Supreme

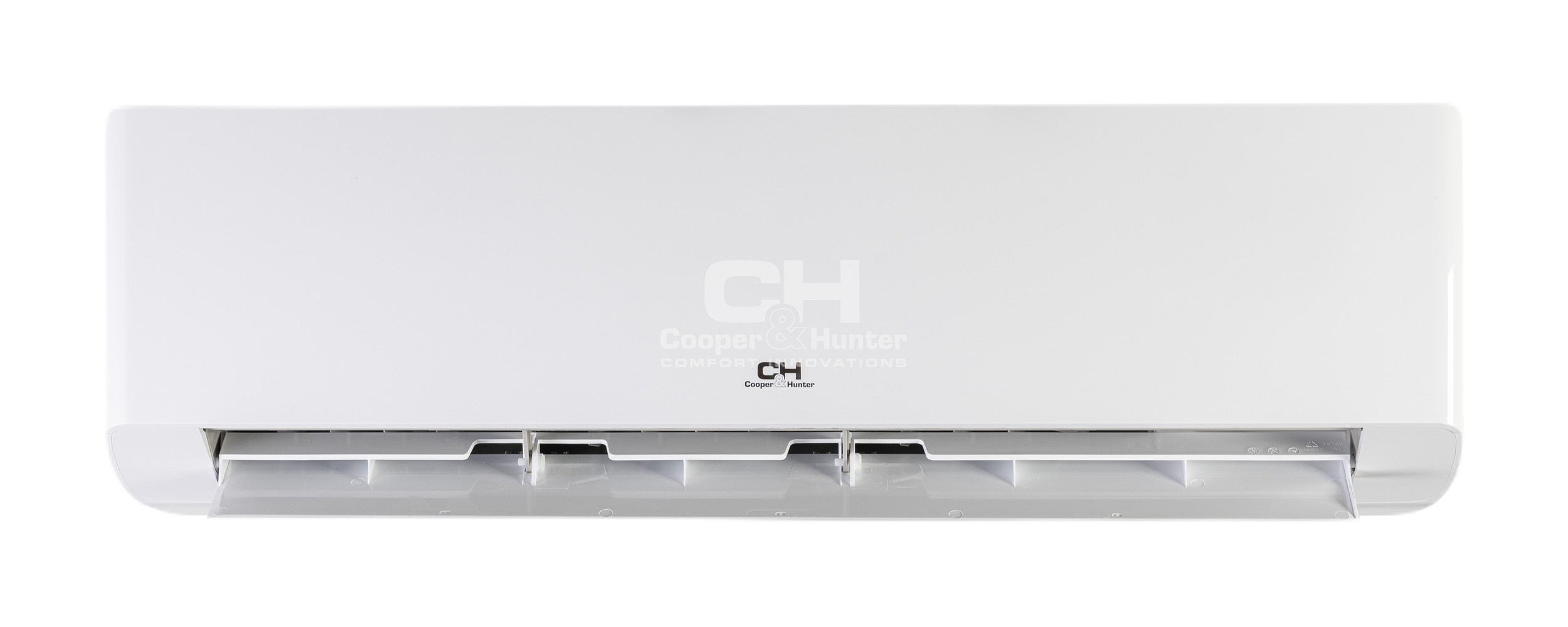

Supreme - a new generation air conditioner that uses an effective ecological refrigerant R32. The model is characterized by very high energy efficiency and unmatched performance. Thanks to the elegant panel, which is available in four colors (white / silver / gold / black), the air conditioner will perfectly fit into any interior.
Plasma ionizer
Function +8 degrees
Vertical and horizontal movement of the blinds

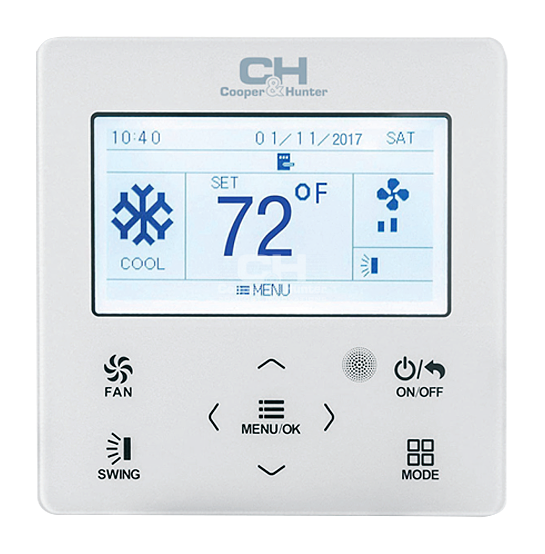

Dry Contact
7 fan speeds
Two-stage compressor
A special operating algorithm that ensures stable and efficient operation at low outside temperatures
Automatic mode with temperature control
WIFI
R32
Heating to -30 °C
Features and functions
Blue Fin Coating
The outdoor unit exchanger is equipped with an anti-corrosion coating that extends its service life.
CH7 Filter
CH7 Filter
Silent operation function
The unit operates more quietly with reduced fan speed and automatic settings
Clock
The current time can be displayed on the remote control.
Compact design
The smaller dimensions of the unit facilitate installation and transportation, as well as reduce maintenance costs.
Multiple fan speeds
Thanks to the wide range of fan speeds, the device can adjust its speed to current needs and conditions.
Horizontal movement of the blinds
The louvers move horizontally to evenly distribute air and temperature in the room.
Gold plated condenser fins
Anti-corrosion gold-plated fins last 3 times longer than normal ones.
High quality engine
High-quality engines ensure stable and quiet operation of the device
High performance
The air conditioner is designed to be highly efficient and economical in use.
Power saving function
When this function is active, the temperature settings are limited to save energy.
Washable air filter
Filters are easy to remove and reinstall
Comfortable night mode
With this option, the user can significantly reduce the noise level during sleep by setting the fan speed to low.
Hot start function
The indoor unit in heating mode will start blowing air when a sufficiently high temperature is reached
I FEEL function

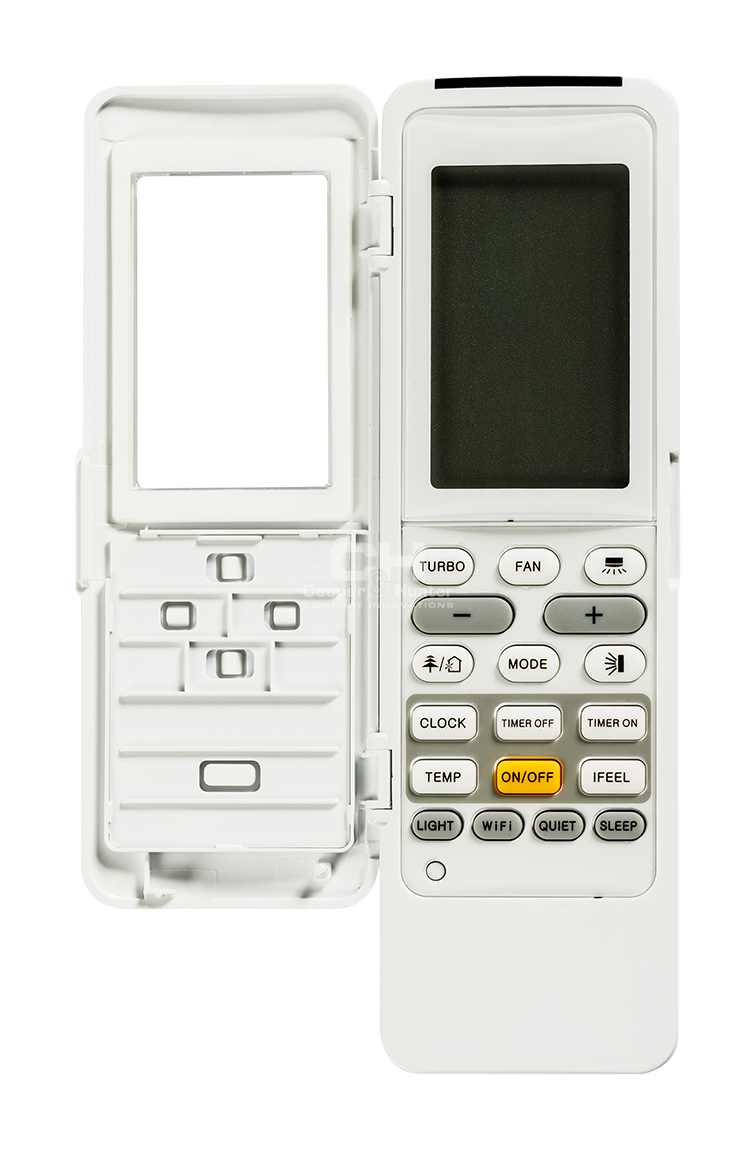

The sensor installed in the remote control senses the ambient temperature, sending a signal to the indoor unit so that it can control the air flow and temperature.
Wi-Fi function
It allows you to remotely control the device using a dedicated application
Vertical movement of the blinds
The louvers move vertically to evenly distribute air and temperature in the room
Heating 8°C
The function of maintaining a positive temperature in rooms where there is no need to maintain a higher temperature
Technical data
| MODEL | CH-S09FTXAM2S-WP/SC/GD/BL | CH-S12FTXAM2S-WP/SC/GD/BL | CH-S18FTXAM2S-WP/SC/GD/BL | CH-S24FTXAM2S-WP/SC/GD/BL |
|---|---|---|---|---|
| Power supply | 220-240V~50Hz/1 phase | 220-240V~50Hz/1 phase | 220-240V~50Hz/1 phase | 220-240V~50Hz/1 phase |
| COOLING | ||||
| Nominal capacity (min-max) (kW) | 2.70 (0.70 - 5.00) | 3.50 (0.85 - 5.00) | 5.30 (1.20 - 7.20) | 7.03 (2.00 - 9.00) |
| Nominal power consumption (min-max) (W) | 550 (80 - 1800) | 840 (60 - 1900) | 1320 (350 - 2500) | 1850 (450 - 3700) |
| Working current (A) | 3.52 | 5.10 | 5.90 | 11.00 |
| EER | 4.91 | 4.20 | 4.02 | 3.80 |
| Annual energy consumption (kWh/year) | 111 | 144 | 281 | 377 |
| SEER | 8.50 | 8.50 | 6.60 | 6.50 |
| Energy class | A+++ | A+++ | A++ | A++ |
| WARMING | ||||
| Nominal capacity (min-max) (kW) | 3.50 (0.70 - 5.50) | 4.20 (0.88 - 7.20) | 5.57 (1.20 - 9.20) | 7.03 (2.00 - 9.50) |
| Nominal power consumption (min-max) (W) | 750 (130 - 2400) | 950 (130 - 2600) | 1320 (350 - 3300) | 1750 (380 - 3800) |
| Working current (A) | 4.63 | 5.70 | 5.90 | 10.76 |
| COP | 4.70 | 4.42 | 4.22 | 4.00 |
| Annual energy consumption (kWh/year) | 961 | 961 | 1877 | 1840 |
| SCOP | 5.10 | 5.10 | 4.40 | 4.10 |
| Energy class | A+++ | A+++ | A+ | A+ |
| Wi-Fi communication | +/- | + | + | + |
| Operating temperature ranges: cooling/heating (°C) | -18~54/-30~24 | -18~54/-30~24 | -18~54/-30~24 | -18~54/-30~24 |
| INDOOR UNIT | CH-S09FTXAM2S-WP/SC/GD/BL | CH-S12FTXAM2S-WP/SC/GD/BL | CH-S18FTXAM2S-WP/SC/GD/BL | CH-S24FTXAM2S-WP/SC/GD/BL |
|---|---|---|---|---|
| Dimensions (W x D x H) (mm) | 996x225x301 | 996x225x301 | 1101x249x327 | 1101x249x327 |
| Transport dimensions (W x D x H) (mm) | 1057x307x377 | 1057x307x377 | 1164x339x402 | 1164x339x402 |
| Net/gross weight (kg) | 13.0/16.0 | 13.5/16.5 | 16.5/20.0 | 16.5/20.0 |
| Air flow (m³/h) | 430/500/560/620/670/720 | 450/530/580/630/680/730/800 | 600/780/950/1150/1200 | 650/750/800/950/1100/1250 |
| Sound pressure level (dB(A)) | 18/22/26/30/34/38/43 | 20/24/28/32/36/41/46 | 30/33/36/39/42/45/48 | 32/35/38/41/44/47/50 |

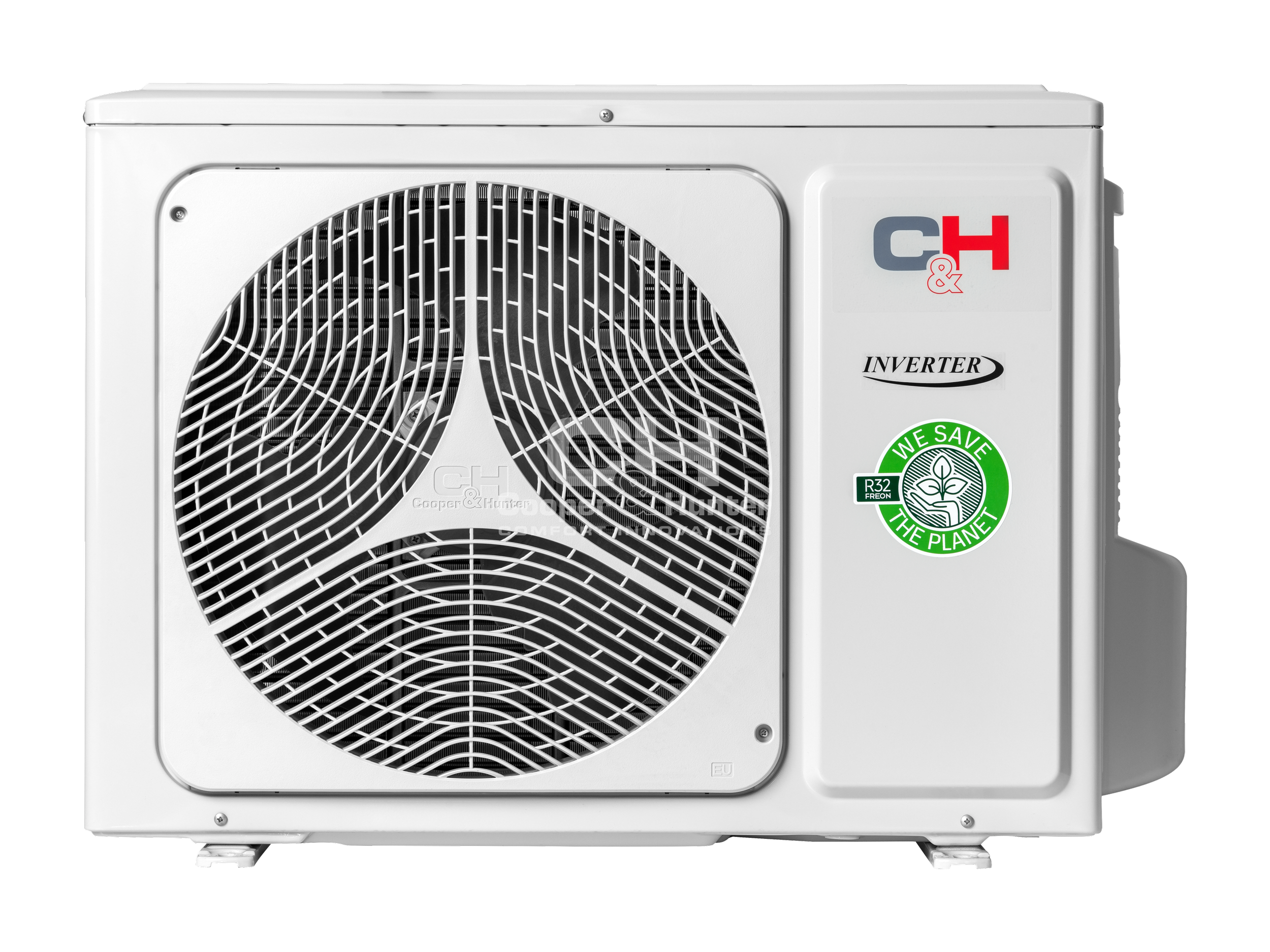

| OUTDOOR UNIT | CH-S09FTXAM2S-WP/SC/GD/BL | CH-S12FTXAM2S-WP/SC/GD/BL | CH-S18FTXAM2S-WP/SC/GD/BL | CH-S24FTXAM2S-WP/SC/GD/BL |
|---|---|---|---|---|
| Dimensions (W x D x H) (mm) | 899x378x596 | 899x378x596 | 1000x427x790 | 1000x427x790 |
| Transport dimensions (W x D x H) (mm) | 945x417x630 | 945x417x630 | 1080x485x840 | 1080x485x840 |
| Net/gross weight (kg) | 44.5/47.5 | 45.5/48.5 | 64.0/69.0 | 65.0/70.0 |
| Air flow (m³/h) | 2400 | 2400 | 4000 | 4000 |
| Sound pressure level (dB(A)) | 53 | 54 | 56 | 56 |
| COOLING PIPES | ||||
| Liquid/gas (mm(inch)) | Ø6.35/Ø9.52 (1/4"/3/8") | Ø6.35/Ø9.52 (1/4"/3/8") | Ø6.35/Ø15.90 (1/4"/5/8") | Ø6.35/Ø15.90 (1/4"/5/8") |
| Refrigerant quantity (kg) | 1.00 | 1.00 | 1.50 | 2.00 |
| Additional amount of agent (g/m) | 20 | 20 | 40 | 50 |
| Standard installation length (m) | 5 | 5 | 5 | 7.5 |
| Maximum length (m) | 15 | 40 | 40 | 50 |
| Maximum height difference (m) | 10 | 20 | 20 | 30 |
| RECOMMENDED ELECTRICAL CABLES AND PROTECTION | ||||
| Powered unit/section (mm²) | external/3x2.5 | external/3x2.5 | external/3x2.5 | external/3x2.5 |
| Communication (mm²) | 4x1.0 | 4x1.0 | 4x1.0 | 4x1.0 |
| Safeguard (A) | 16 | 16 | 20 | 25 |
