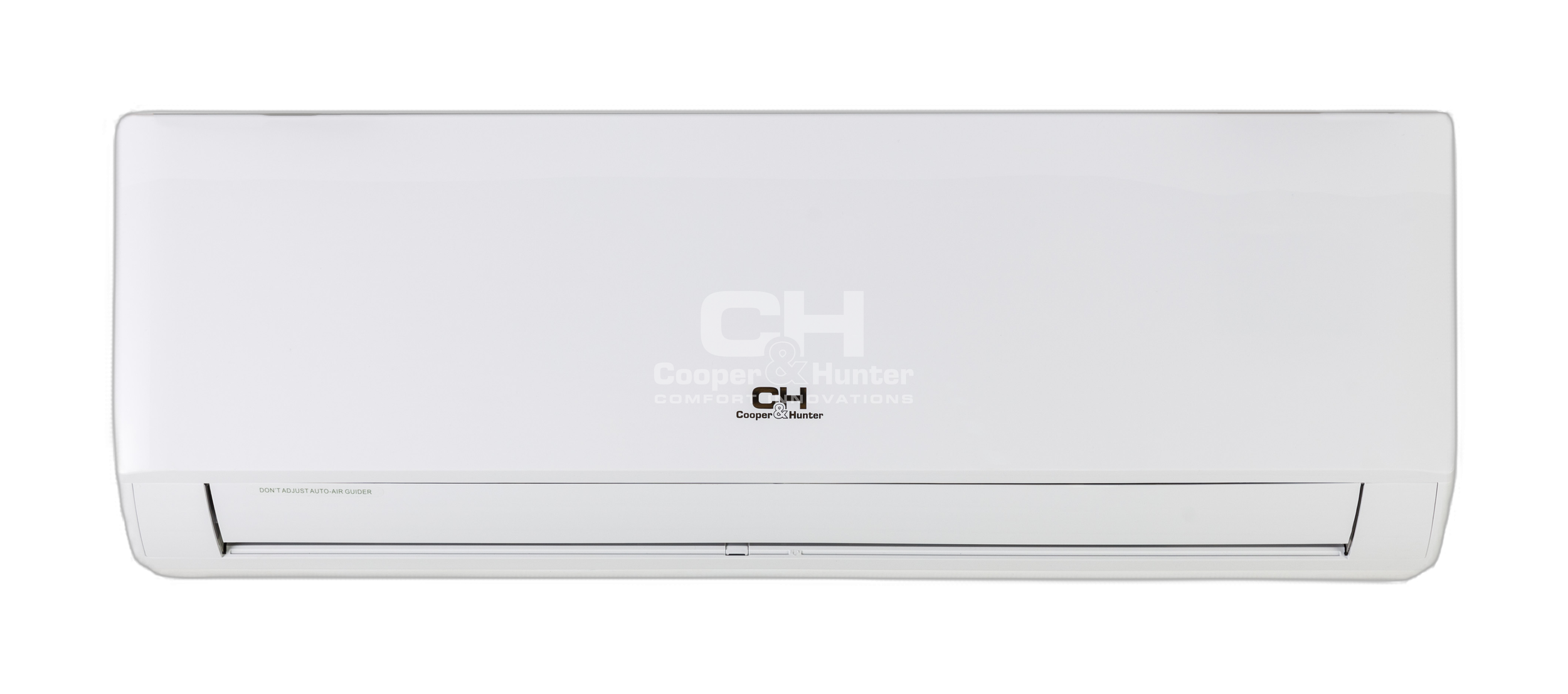

Arctic 2
Arctic Inverter operating on the basis of ecological R32 agent was created to work in heating mode at low outside temperatures reaching even -25°C. The device is equipped with a drip tray heater and an air ionizer. Control is facilitated by the built-in WiFi module.
Effective operating temperature range from -25°C to +50°C
G-Matrik technology
Special work algorithm that can ensure stable and efficient operation at low outdoor temperatures
Dry Contact
Plasma ionizer

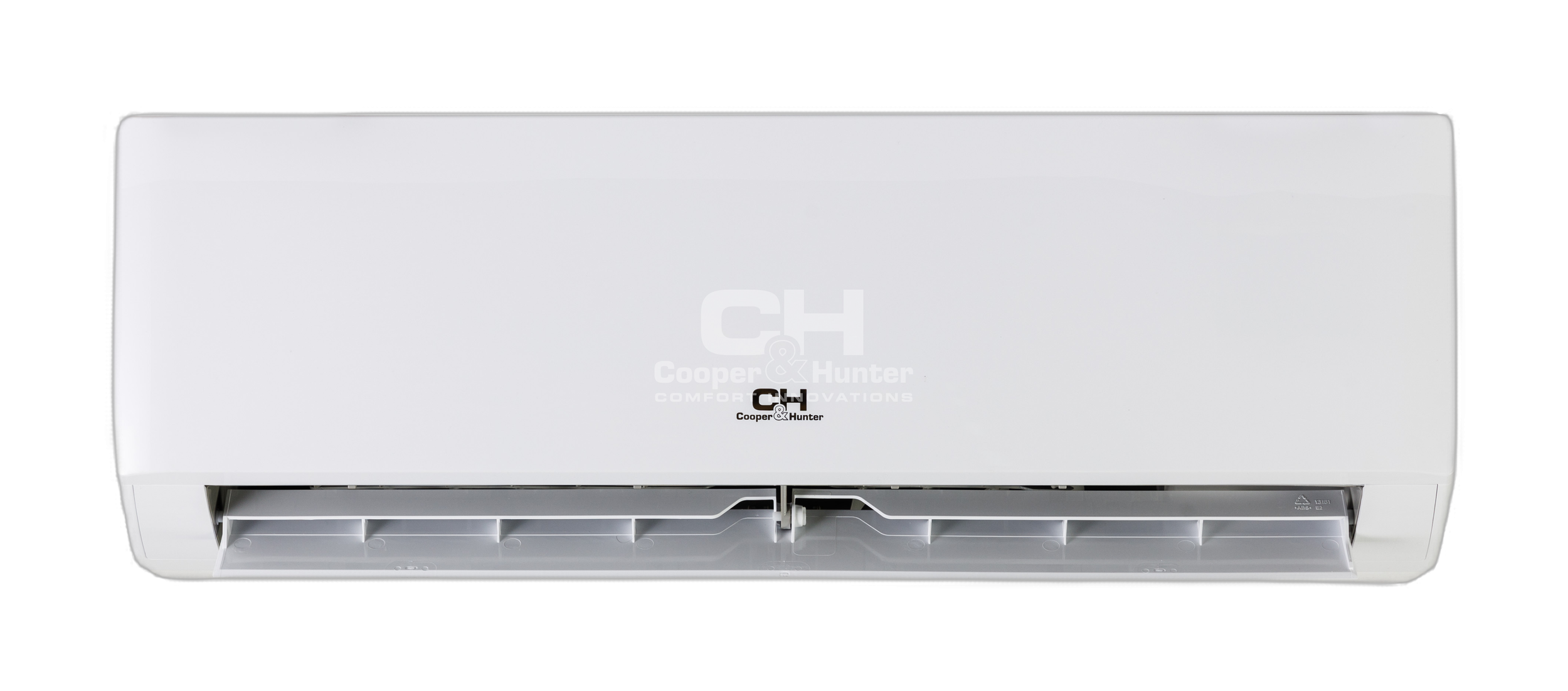

Horizontal and vertical movement of the louvers for better air distribution in the room

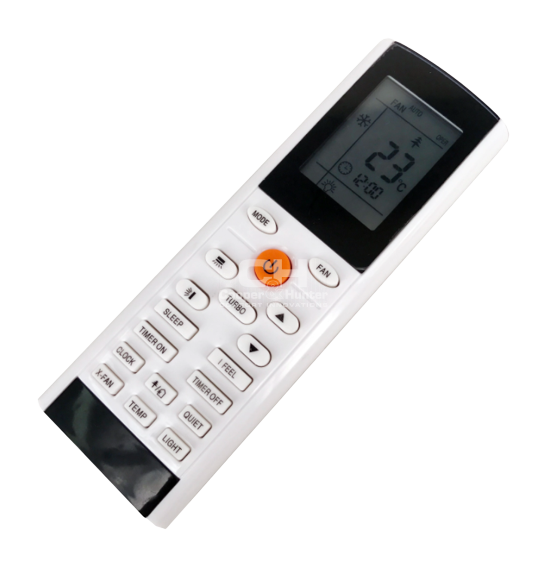

Built-in temperature sensor in the remote control
WIFI
R32
Features and functions
Blue Fin Coating
The outdoor unit exchanger is equipped with an anti-corrosion coating that extends its service life.
CH7 Filter
CH7 Filter
Silent operation function
The unit operates more quietly with reduced fan speed and automatic settings
Clock
The current time can be displayed on the remote control.
Air ionizer
Effectively cleans the air from harmful microorganisms and unpleasant odors
Wi-Fi function
It allows you to remotely control the device using a dedicated application
Horizontal movement of the blinds
The louvers move horizontally to evenly distribute air and temperature in the room.
Compact design
The smaller dimensions of the unit facilitate installation and transportation, as well as reduce maintenance costs.
Multiple fan speeds
Thanks to the wide range of fan speeds, the device can adjust its speed to current needs and conditions.
High quality engine
High-quality engines ensure stable and quiet operation of the device
Power saving function
When this function is active, the temperature settings are limited to save energy.
Washable air filter
Filters are easy to remove and reinstall
Comfortable night mode
With this option, the user can significantly reduce the noise level during sleep by setting the fan speed to low.
Hot start function
The indoor unit in heating mode will start blowing air when a sufficiently high temperature is reached
Heating 8°C
The function of maintaining a positive temperature in rooms where there is no need to maintain a higher temperature
I FEEL function
The sensor installed in the remote control senses the ambient temperature, sending a signal to the indoor unit so that it can control the air flow and temperature.
Technical data
| MODEL | CH-S09FTXLA2-NG | CH-S12FTXLA2-NG | CH-S18FTXLA2-NG | CH-S24FTXLA2-NG |
|---|---|---|---|---|
| Power supply | 220-240V~50Hz/1 phase | 220-240V~50Hz/1 phase | 220-240V~50Hz/1 phase | 220-240V~50Hz/1 phase |
| COOLING | ||||
| Nominal capacity (min-max) (kW) | 2.70 (0.80 - 3.80) | 3.51 (0.90 - 4.40) | 5.20 (1.00 - 6.10) | 7.10 (2.00 - 8.85) |
| Nominal power consumption (min-max) (W) | 695 (100 - 300) | 961 (220 - 1400) | 1576 (100 - 2350) | 2030 (450 - 2900) |
| Working current (A) | 3.10 | 4.30 | 7.10 | 9.00 |
| EER | 3.89 | 3.65 | 3.30 | 3.50 |
| Annual energy consumption (kWh/year) | 126 | 173 | 256 | 355 |
| SEER | 7.50 | 7.10 | 7.10 | 7.00 |
| Energy class | A++ | A++ | A++ | A++ |
| WARMING | ||||
| Nominal capacity (min-max) (kW) | 3.00 (0.90 - 4.25) | 3.81 (0.90 - 4.70) | 5.60 (1.10 - 6.60) | 7.80 (1.80 - 9.45) |
| Nominal power consumption (min-max) (W) | 700 (150 - 1400) | 953 (220 - 1550) | 1436 (180 - 2400) | 2000 (350 - 3000) |
| Working current (A) | 3.20 | 4.60 | 6.30 | 9.30 |
| COP | 4.29 | 4.00 | 3.90 | 3.00 |
| Annual energy consumption (kWh/year) | 897 | 1093 | 1400 | 1867 |
| SCOP | 4.20 | 4.10 | 4.20 | 4.20 |
| Energy class | A+ | A+ | A+ | A+ |
| Wi-Fi communication | +/- | + | + | + |
| Outdoor unit operating temperature ranges: cooling/heating (°C) | -15~50/-25~30 | -15~50/-25~30 | -15~50/-25~30 | -15~50/-25~30 |
| INDOOR UNIT | CH-S09FTXLA2-NG | CH-S12FTXLA2-NG | CH-S18FTXLA2-NG | CH-S24FTXLA2-NG |
|---|---|---|---|---|
| Dimensions (W x D x H) (mm) | 845x289x209 | 845x289x209 | 1017x304x221 | 1135x328x247 |
| Transport dimensions (W x D x H) (mm) | 931x281x379 | 931x281x379 | 1060x374x297 | 1177x406x332 |
| Net/gross weight (kg) | 10.5/12.5 | 10.5/12.5 | 13.5/16.0 | 16.5/19.5 |
| Air flow (m³/h) | 390/420/440/470/540/570/610 | 360/420/480/540/600/650/700 | 460/520/570/610/680/750/850 | 800/850/900/950/1000/1100/1250 |
| Sound pressure level (dB(A)) | 20/22/24/26/28/32/38 | 22/24/26/29/32/35/38 | 24/27/31/34/38/41/45 | 27/29/35/37/39/42/47 |
| OUTDOOR UNIT | CH-S09FTXLA2-NG | CH-S12FTXLA2-NG | CH-S18FTXLA2-NG | CH-S24FTXLA2-NG |
|---|---|---|---|---|
| Dimensions (W x D x H) (mm) | 732x555x330 | 732x555x330 | 802x555x350 | 958x660x402 |
| Transport dimensions (W x D x H) (mm) | 794x376x615 | 794x376x615 | 872x398x620 | 1032x456x737 |
| Net/gross weight (kg) | 24.5/27.0 | 24.5/27.0 | 30.5/33.0 | 41.5/46.0 |
| Air flow (m³/h) | 1950 | 1950 | 2200 | 3600 |
| Sound pressure level (dB(A)) | 52 | 52 | 56 | 59 |
| COOLING PIPES | ||||
| Liquid/gas (mm(inch)) | Ø6.35/Ø9.52 (1/4"/3/8") | Ø6.35/Ø9.52 (1/4"/3/8") | Ø6.35/Ø12.70 (1/4"/1/2") | Ø6.35/Ø15.90 (1/4"/5/8") |
| Refrigerant quantity (kg) | 0.57 | 0.57 | 0.82 | 1.5 |
| Additional amount of agent (g/m) | 16 | 16 | 16 | 40 |
| Standard installation length (m) | 5 | 5 | 5 | 5 |
| Maximum length (m) | 15 | 15 | 25 | 25 |
| Maximum height difference (m) | 10 | 10 | 10 | 10 |
| RECOMMENDED ELECTRICAL CABLES AND PROTECTION | ||||
| Powered unit/section (mm²) | external/3x1.0 | external/3x1.0 | external/3x1.5 | external/3x2.5 |
| Communication (mm²) | 4x1.0 | 4x1.0 | 4x1.0 | 4x1.0 |
| Safeguard (A) | 10 | 10 | 16 | 25 |
